General information：

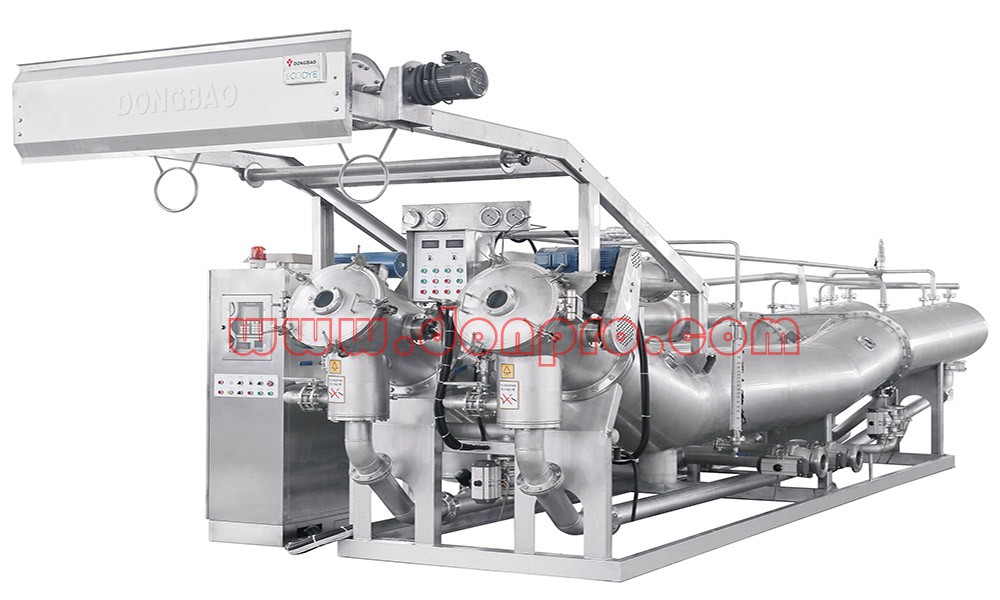

The innovative JED is a high temperature, high pressure jet dyeing machine. This new design with its swimming material transport and low tension of the goods avoids crease marks and provide high quality for a wide range of fabrics: Polyester, Rayon, Nylon, Cotton, T/R, T/C and many more.
High efficient and economic, the JED saves over 30% water, 30% auxiliaries and steam compare to traditional jet dyeing machines.
Technical details：
- Touch screen controller
- Chamber capacity 250 kg
- Fabric winch drive max. 600 m/min,depending on fabric properties
- Liquor ratio start at 1:4.5
- Frequency controlled pump motor
- Automatic seam detector
- Fabric circulation control
- Electro-pneumatic operated valves
- Operating temperature up to 140℃
- Fast dosing system, bypass function
- Control cabinet in stainless steel
- Electronic water meter
- Electronic measurement of liquor ratio
- Frequency regulated unloading winch
Optional：
- Hot water stock tank, preparation of the complete process bath
- Second service tank
- HT drain
- Double rope unloading device
- Self cleaning filter
- Unloading plaiter
- Power drain function
|
 |
Product Name: JED Eco-Dye  |
