General information：
Widely adaptability
1. The machine not only has the air and liquid multifunction dyeing, but also has the separate airflow dyeing function, suitable for different style.
2. Suitable for all types of knitted, woven fabrics: 100% Cotton, Polyester blended etc., it can use different dyeing method according to different fabric, high efficient and economic.
Energy saving
Compared with traditional airflow dyeing machine it can save about 15%~20% of electricity.
2. Extreme low liquor ratio start at 1:2~1:3, Compared with traditional overflow dyeing machine, it can save 60% water, and significantly reduce the auxiliaries, save more dye stuffs.
Level dyeing and high color fastness
The fabric has excellent dyeing effect, no crease mark, when the machine running in air and liquid multifunction condition. The fabric not only has the same flatness and color fastness as overflow dyeing machine, but also has the same hand feeling as airflow dyeing machine the level dyeing is better than overflow dyeing machine.
Short process times
1. High temperature draining system, save dyeing time.
2.High efficiency heating system, cold water can increase to 60℃~70℃ instantly, save process time.
3. Continuous rinsing technology, the clean water is sprayed to fabric by the water injection system, the waste water is drained directly, so that it can achieve excellent rinsing effect, and can save water and time.
Technical details：
-Fabric lifting speed: 100-600m/min
-Max temperature up to 140℃
-Max working pressure: 0.35Mpa
-Temperature increasing rate: (average):6℃/min steam pressure＞0.5Mpa
-Temperature decreasing rate: (average):5℃/min cooling water pressure＞0.2Mpa
Optional ：
-Frequency-controlled centrifugal blower and pump
-Teflon tube chamber
-Frequency- controlled lifting, plaiter and main pump system.
-360°Rotary spray rinsing device.
-Automatic temperature control system.
-Ration dosing system.
-Dyeing liquor atomization nozzle and overflow nozzle.
-Self-clean filter.
-Dyeing liquor second time circulation system
-Infrared monitoring fabric anti-tangle device
-High efficiency heat exchanger
-Analog water level, Water level Auto display and control
-Glass fiber reinforced plastics working platform
-All the parts of machine body contacting with dyeing liquor are made of high quality corrosion-resistant stainless steel 316L.
|
 |

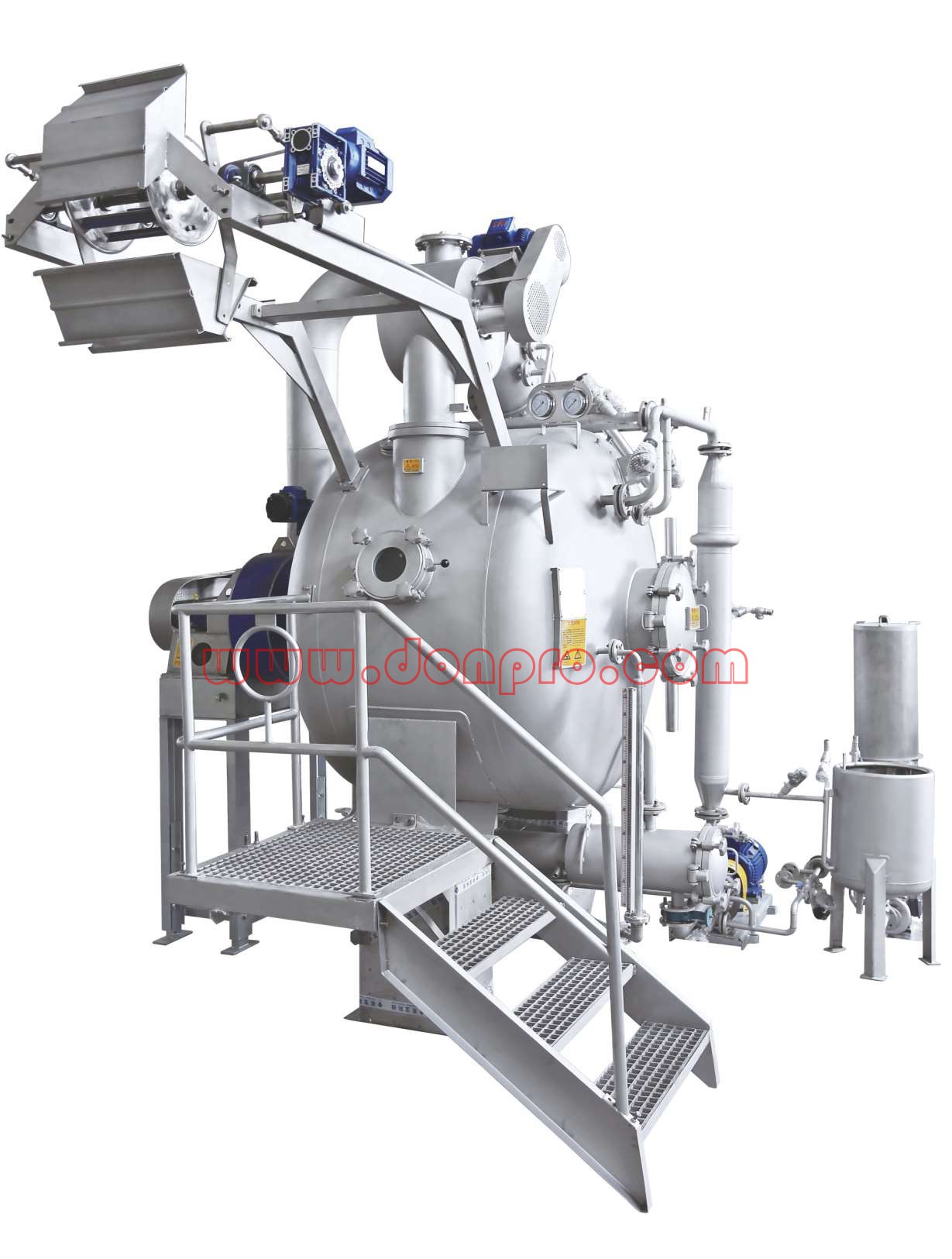

Product Name: MULTI-FLOW SamY Eco-Dye  |
