General information:

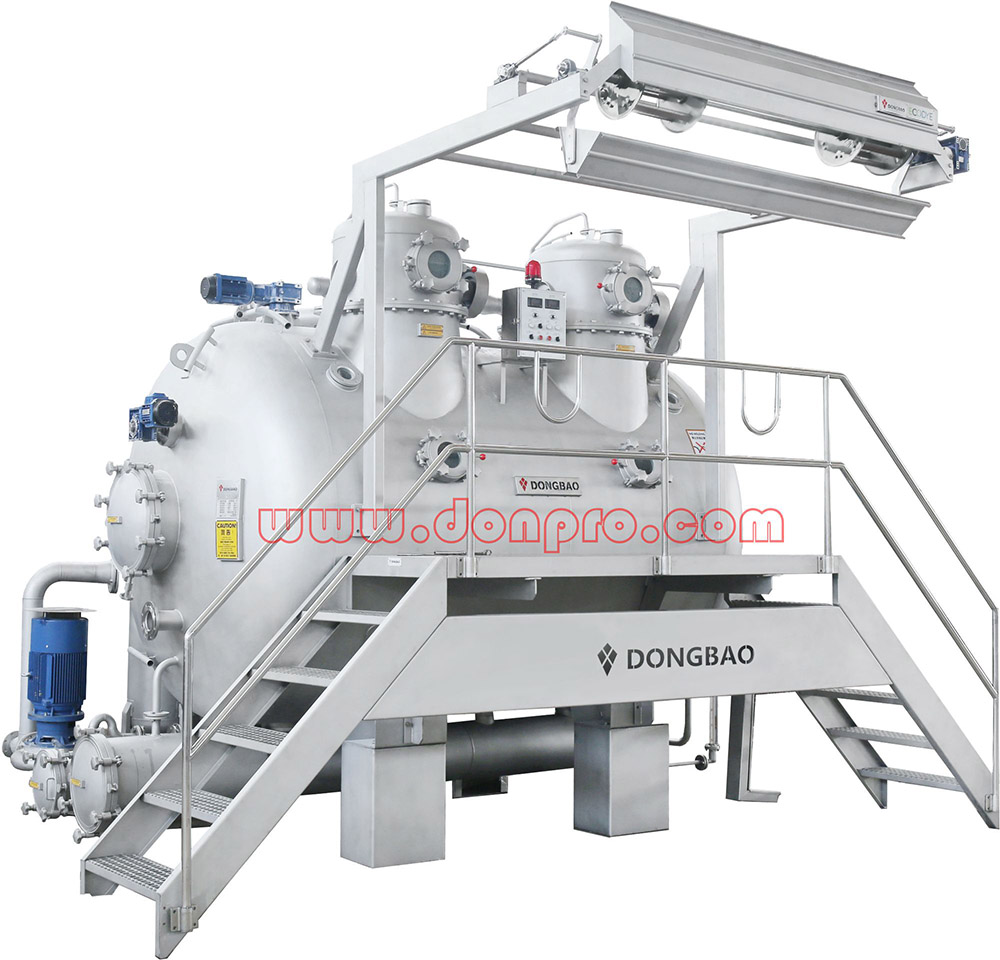

The innovative O.F. Eco-Dye is a high temperature, high pressure overflow dyeing machine, suitable for all types of knitted and woven fabrics: 100% Cotton, Polyester blends, etc.
With its increased productivity and enhanced reliability, the O.F. Eco-Dye offers new perspectives and opportunities for all progressive textile companies.
High efficient and economic, it saves over 50% water consumption, 40% auxiliaries and steam compared with traditional dyeing machines.

Technical details:
- Touch screen controller
- Chamber capacity max. 300 kg
- Fabric winch drive max. 450 m/min,depending on fabric properties
- Liquor ratio start at 1:3.5
- Frequency controlled pump motor
- Automatic seam detector
- Fabric circulation control
- Electro-pneumatic operated valves
- Operating temperature up to 140℃
- Adjustable chamber, machine load can be reduced up to 60%
- Fast dosing system, bypass function
- Teflon tube chamber
- Control cabinet in stainless steel
- Electronic water meter
- Electronic measurement of liquor ratio
- Frequency regulated unloading winch

Optional:
- Hot water stock tank, preparation of the complete process bath
- Second service tank
- HT drain
- Self cleaning filter
- Power drain function
- Double rope unloading device



Product Name: OVER-FLOW Eco-Dye
