General information：

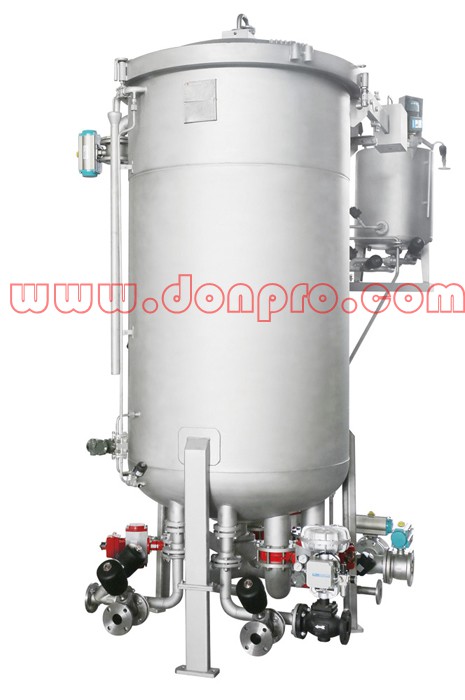

The innovative PULSE dyeing machine is a complete new concept in the yarn
dyeing field.
The power consumption for the main circulation pump is 70% lower than compared to traditional machines. Liquor ratio is now set to 1:4, average consumption of chemicals, steam and compressed air is directly proportional with a reduction of 20% to 30%, it guarantees extremely fast payback.
Technical details：
- All liquor-carrying parts are manufactured using stainless steels 316L
- Touch screen controller
- Max. working pressure: 0.44 Mpa
- Max. working temperature: 140℃
- Heating rate: 20~130℃ about 30 minutes (Saturated steam pressure 0.7Mpa)
- Cooling rate: 130~80℃ about 20 minutes (cooling water pressure 0.3 Mpa)
- Standard spindle dia. Is φ48mm
- Standard package size is φ165mm, height 160mm, weight is calculated as 1kg per cone
- Intelligence control system, step-less flow control: Adjust the pressure between the inner and outer layer automatically - Machine fully Automatic control by SETEX controller + Setex PLC
- And machine Automatic and Manual everything Control from main Electric cabinet
Optional：
- Hot water stock tank, preparation of the complete process bath
- Second service tank
- HT drain
- Second carrier
- Progressive dosing system
- Secondary water feeding and draining
- Accessories for dyeing, such as cone, intermediate gasket and self falling locker
|
 |
Product Name: Pulse Eco-Dye  |
