General information:

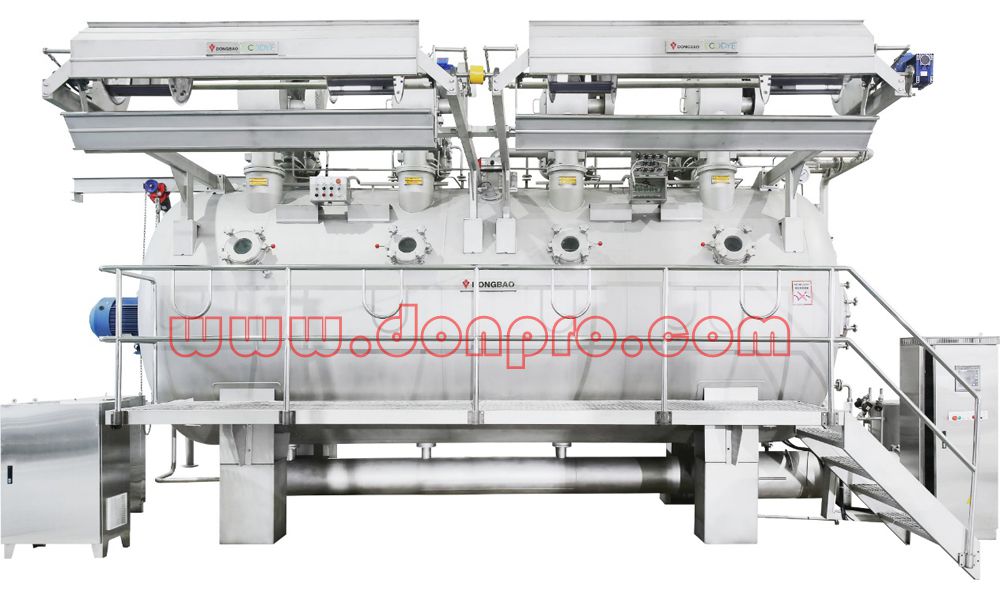

ULTRA-LOW ENERGY COMSUMPTION MUTI FLOW ECO-DYEING MACHINE
SAVE UP TO 40% ENERGY COMSUMPTION COMPARE TO TRADITIONAL MUTI FLOW DYEING MACHINE
Applicable
Cotton rayon nylon tencel polyester T/R T/C etc.


Technical details:
Blower fan power and noise contrast table
Blower fan power contrast table
Model/
Blower fan Power(KW)
Traditional Muti-Flow machine

DongBao DBAL-G
1-Chamber
18.5
15
2-Chambers
37
18.5
4-Chambers
75
45
6-Chambers
132
75
Blower fan noise contrast table
Blow
Fan frequency(Hz)/
Noise(dB)
Traditional Muti-Flow machine
DongBao DBAL-G
40
85
72
45
86
75
50
87
78
Take 2-chambers dyeing machine for example
SPECIFICATIONS
Model/
Dimension(mm)
L
H
W1
W2
Blower fan power
Main pump power
DBAL-G I
4388
3482
4005
1076
15
5.5
DBAL-G II
4993
3632
4092
1076
18.5
7.5
DBAL-G IV
7615
3632
4245
1076
45
11
DBAL-G VI
11763
3632
4327
1076
75
11



Optional:
-It has the same function as traditional air & liquid flow dyeing machine, widely applicability, level dyeing, short process time, energy saving and emission reduction.
-The inside wind pipe reduce the machine height, meanwhile the driven motor rated power need only half power consumption compared with traditional machine due to unique design of wind pipe and its components, take two-chambers machine for example,The electricity consumption is 40% compared with traditional air & liquid flow dyeing machine.
-The machine adopt integrated design liquid filter further reduce the machine height, So that to reduce the fabric running tension and deformation. The machine height is 350mm lower that before, it’s save more space and easy for worker to operate the machine



Product Name: MULTI-FLOW Eco-Dye 3rd
