DONGBAO

Special
features：

-Newly developed heating core inside the machine to lower the liquor ratio

-Power drain function to shorter the process time

-Smart rinsing process to save water

-Flexible loading

-Ultra-low liquor ratio， starts at 1:4

Technical details：

-All liquor-carrying parts are manufactured using stainless steels 316L

-Max. working pressure: 0.44Mpa

-Max. working temperature: 140℃

-Heating rate: 20~130℃ about 30 minutes (Saturated steam pressure 0.7Mpa)

-Cooling rate: 130~80℃ about 20 minutes (cooling water pressure 0.3Mpa)

-Standard spindle dia. is ø48mm

-Standard package size is ø165mm, height 160mm, weight is calculated as 1 kg per cone

-Intelligence control system, step-less flow control: Adjust the pressure between the inner and outer layer automatically

-Machine fully Automatic control by SETEX controller + Setex PLC

-And machine Automatic and Manual everything Control from main Electric cabinet

Optional ：

-Various kinds of carriers (fiber, package and beam)

-Hot temperature drain

-Progressive dosing system

-Accessories (cone, intermediate gasket and self-falling locker)

-Unloading device

-Hot water stock tank, preparation of the complete process bath)

-Second service tank

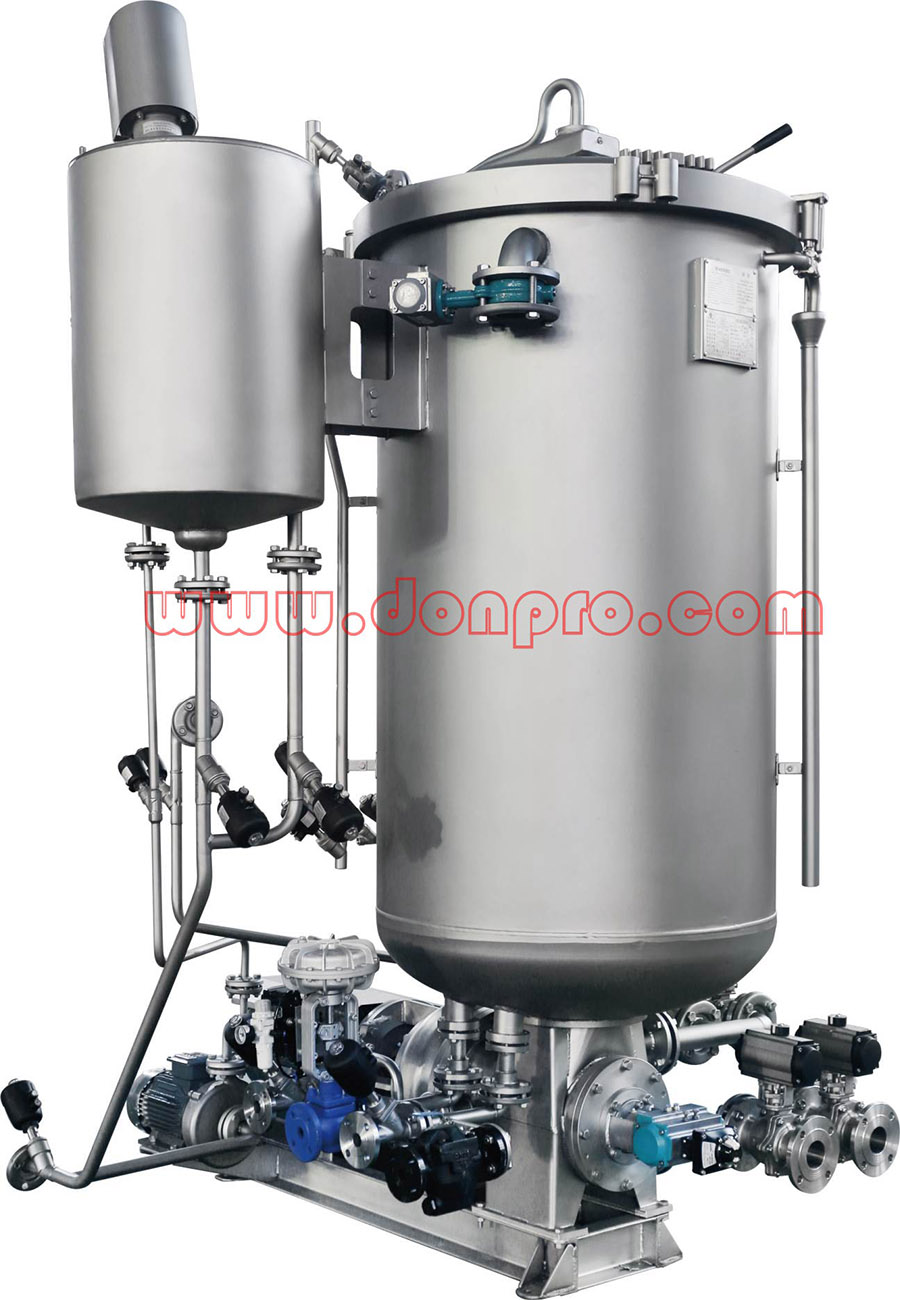

Product Name: Package Eco-Dye
