New
Generation Smart Soft Flow Jet Dyeing Machine
JED
DUO extreme rapid high temperature & high pressure dyeing machine is
designed to save energy, man power, chemicals, time and space. Suitable for
woven or knitted fabric: N100%, T100%, N+OP, T+OP, T/C, CVC, T/R, N/C and N/T.
Also micro fiber fabrics like TRICOT, poly-peach skin, micro suede and
jacquard.
Effortless
Flow guiding pipe
The
new patent design Effortless Flow guiding pipe is vertically shorter compared
to the traditional guiding pipe. Hence, lower nozzle pressure required to carry
the fabric, good circulation speed. Also guiding pipe has more position change
for fabric flow. This allows fabric to relax and softening, increasing the
quality of dyeing. Effective result for curling fabric.
Low
Liquor ratio, energy efficient design
Chamber
is specially designed to reduce the water consumption when dyeing. Inner plate
is patent design with special w-shaped corrugated floor. Fabric is flowing
unhindered in its circulating cycle without need of large motor pump, saving
electricity cost.
Low
tension, high quality, fast dyeing system
With
smooth fabric circulation and regulated fabric folding, the fabric is carried
into the main reel at its lowest tension. The speed of the main reel can be
controlled precisely, so the speed of the reel and the fabric is at a
simultaneous pace, avoiding any usual flaws.
Unique
inner plate design, high production capacity
Special
designed inner plate inner plate plus large chamber structure, allowing one
single nozzle to dye up to two rope of fabric at one time(for fabric ＜200g/yard). Greatly
increase the production capacity (increase up to 40% and above) and reducing
the cycle time required, achieving a very even color shade.
Control
Systems
Our
fully automated JEDUO DUO Eco-Dye can be equipped with many controller systems.

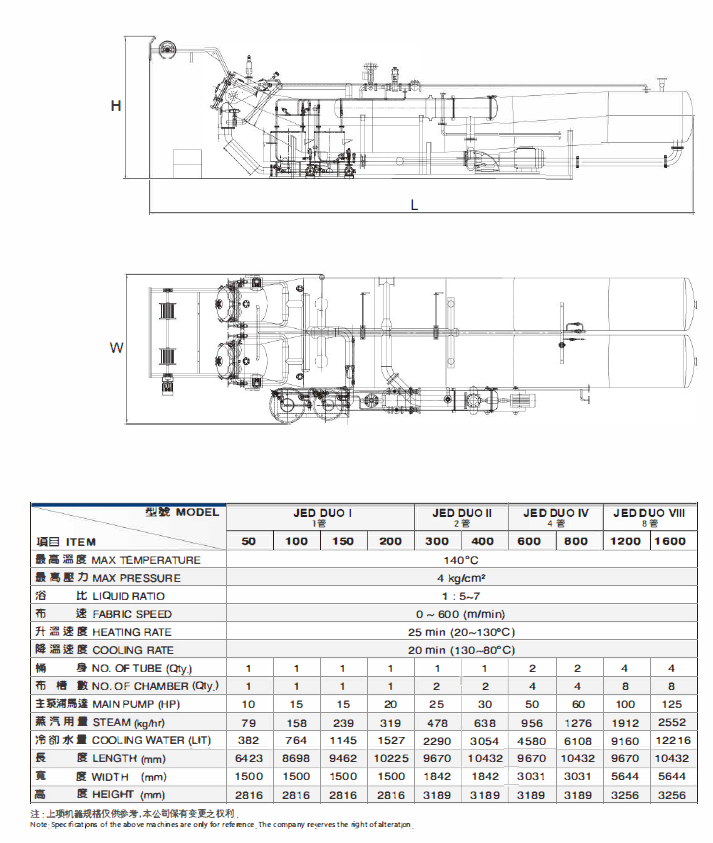

Specifications
Technical Details
Main tank &
liquor carrying parts are made of stainless steels 316L
Liquor
ratio starts at 1:4.5
Fabric
winch drive max. 600m/min, depending on fabric properties
Adjustable
winch speed
Maximum
operating temperature 140℃
Touch
screen controller
Electro-pneumatic
operated valves
Frequency
controlled pump motor & winch
Control
cabinet in stainless steel
Adjustable
nozzle pressure
Adjustable
round nozzle
Automatic
seam detector
Rope
circulation control
Water
meter
Fully
automatic dosing
Proportional
valve for heating & cooling
Optional
High speed draining
Water in flow meter
Hot water stock tank
Second dosing tank
Dual water in & out
Multi rate dosing device
Dosing tank mixing device
Swinging device for unloading reel
Intelligent rinsing system
P.H. sensor & automatic acid dosing
Self cleaning filter
